 3PC FLANGE BALL VALVE
Size
1/2" ~ 4" (DN15 ~ DN100)
Material
ASTM-A351-CF8M, ASTM-A351-CF8
ASTM-A351-CF3M, ASTM-A216-WCB
Flange Dimension
ANSI B16.5
Face to Face Dimension
DIN 3202 / F1 TYPE
Options
locking device

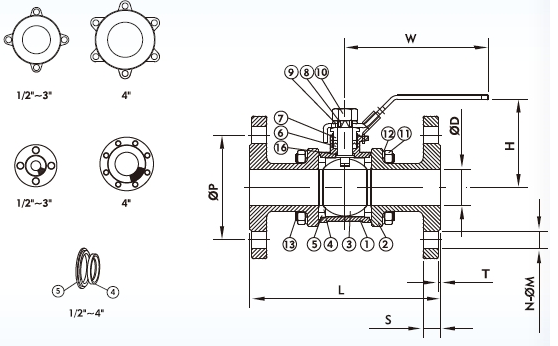

Dimension
UNIT:MM
|
SIZE
|
D
|
øP
|
øQ
|
S
|
H
|
T
|
øU
|
L
|
øM
|
N
|
W
|
|
1/2"
|
15
|
60.5
|
89
|
11.2
|
59
|
1.6
|
35
|
130
|
16
|
4
|
39
|
|
3/4"
|
20
|
70
|
99
|
11.2
|
62
|
1.6
|
43
|
150
|
16
|
4
|
41
|
|
1"
|
25
|
79.5
|
108
|
11.2
|
68
|
1.6
|
51
|
160
|
16
|
4
|
50
|
|
1-1/4"
|
32
|
89
|
117
|
12.7
|
88
|
1.6
|
64
|
180
|
16
|
4
|
56
|
|
1-1/2"
|
38
|
98.5
|
127
|
14.3
|
100
|
1.6
|
73
|
200
|
16
|
4
|
70
|
|
2"
|
50
|
120.5
|
152
|
15.9
|
108
|
1.6
|
92
|
230
|
19
|
4
|
78
|
|
2-1/2"
|
65
|
140
|
178
|
17.5
|
125
|
1.6
|
105
|
290
|
19
|
4
|
98
|
|
3"
|
80
|
152.5
|
190
|
19
|
136
|
1.6
|
127
|
310
|
19
|
4
|
108.5
|
|
4"
|
100
|
190.5
|
229
|
23.8
|
160
|
1.6
|
157
|
350
|
22
|
8
|
140
|
Materials List
|
NO.
|
Description
|
Q'TY
|
Material
|
|
1
|
Body
|
1
|
ASTM-A351-CF8M
|
ASTM-A216-WCB
|
|
2
|
Cap
|
2
|
ASTM-A351-CF8M
|
ASTM-A216-WCB
|
|
3
|
Ball
|
1
|
ASTM-A351-CF8M
|
ASTM-A351-CF8
|
|
4
|
Seat
|
2
|
PTFE
|
PTFE
|
|
5
|
Joint Gasket
|
2
|
PTFE
|
PTFE
|
|
6
|
Stem Packing
|
1
|
PTFE
|
PTFE
|
|
7
|
Gland Nut
|
1
|
SUS 304
|
SUS 304
|
|
8
|
Stem
|
1
|
SUS 316
|
SUS 304
|
|
9
|
H-Spring Washer
|
1
|
SUS 304
|
SUS 304
|
|
10
|
Handle Nut
|
1
|
SUS 304
|
SUS 304
|
|
11
|
Nut
|
8~12
|
SUS 304
|
SUS 304
|
|
12
|
Spring Washer
|
8~12
|
SUS 304
|
SUS 304
|
|
13
|
Bolt
|
4~6
|
SUS 304
|
SUS 304
|
|
14
|
Handle
|
1
|
SUS 304
|
SUS 304
|
|
15
|
Handle Cover
|
1
|
PLASTIC
|
PLASTIC
|
|
16
|
Thrust Washer
|
1
|
PTFE
|
PTFE
|
|
17
|
Locking Device
|
1
|
SUS 304
|
SUS 304
|
|
