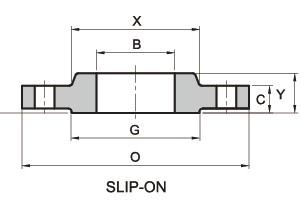

 SLIP ON FLANGE (SO)
Size
1/4"-160" (DN8-DN4000)
Type
ANSI: Flat face(FF),Raised face(RF),Tongue(T),Groove(G),Female(F),Male(M),Ring type joints face(RJ/RTJ)
DIN: Type A(Flat Face),Type B(Raised Face),Type C(Tongue),Type D(Groove),Type E(Spigot),Type F(Recess),Type G(O-Ring Spigot),Type H(O-Ring Groove)
Pressure
ANSI class 150,300,600,900A,1500,2500
DIN PN 2.5,6,10,16,25,40,63,100,160,250,320,400
Standard
ASME ANSI B16.5/ASME ANSI B16.47
API 605,API 6L
MSS SP 44
CSA Z245.12
EN1092-1,EN1759-1
DIN2573,DIN2576
BS1560,BS4504,BS10
AFNOR NF,E29-200-1
ISO7005-1
AS2129
JIS B2220
UNI 2276/UNI 2277/UNI 2278/UNI 6089/UNI 6090
Material
Carbon Steel: ASTM A105,20, Q235,16Mn #, ASTM A350LF1, LF2CL1/ CL2, CL1/ CL2, LF3ASTM A694F42, F46, F48, F50, F52, F56, F60, F65, F70;
Stainless Steel: ASTM A182,304L, F304F316,316L,1Cr18Ni9Ti,0Cr18Ni9Ti,321,18-8;
Alloy Steel: ASTM A182F1, F5a, F9, F11, F12, F22, F91, A182F12, A182F11,16MnR, Cr5Mo,12Cr1MoV,15CrMo,12Cr2Mo1, A335P22, St45.8, ect.
Low temperature steel: ASTM/ASME A402 WPL 3-WPL 6
High performance steel: ASTM/ASME A860 WPHY 42-46-52-60-65-70
|
