 2PC FLANGE BALL VALVE
Size
1/2" ~ 4 " (DN15 ~ DN100)==> 1-1/4" (DN32) is not available
Material
ASTM-A351-CF8M, ASTM-A351-CF8
ASTM-A351-CF3M, ASTM-A216-WCB
Pressure
ANSI CLASS 150

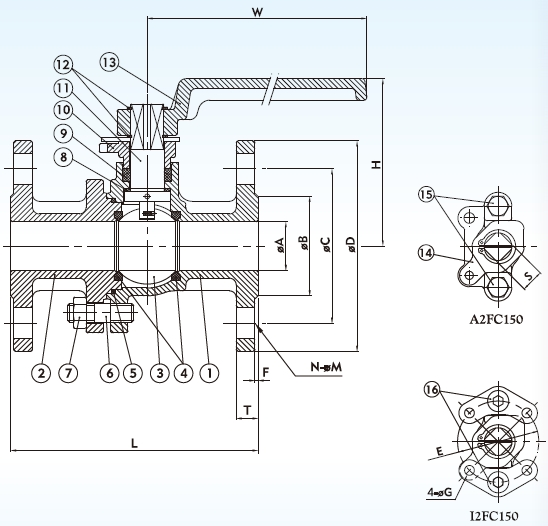

Dimension
UNIT:MM
|
SIZE
|
A
|
B
|
C
|
D
|
E
|
F
|
G
|
H
|
L
|
øM
|
N
|
S
|
T
|
W
|
|
1/2"
|
15
|
35
|
60.5
|
89
|
F04/42
|
1.6
|
6
|
70
|
108
|
15.9
|
4
|
11
|
11.2
|
130
|
|
3/4"
|
20
|
43
|
70
|
98
|
F04/42
|
1.6
|
6
|
73
|
117.5
|
15.9
|
4
|
11
|
11.2
|
130
|
|
1"
|
25
|
51
|
79.5
|
108
|
F05/50
|
1.6
|
7
|
87
|
127
|
15.9
|
4
|
14
|
11.2
|
163
|
|
1-1/2"
|
38
|
73
|
98.5
|
127
|
F07/70
|
1.6
|
9
|
130
|
165
|
15.9
|
4
|
17
|
14.3
|
200
|
|
2"
|
50
|
92
|
120.5
|
152
|
F07/70
|
1.6
|
9
|
137
|
174
|
19.1
|
4
|
17
|
15.9
|
200
|
|
2-1/2"
|
65
|
105
|
140
|
178
|
F07/70
|
1.6
|
9
|
150
|
190.5
|
19.1
|
4
|
17
|
17.5
|
200
|
|
3"
|
80
|
127
|
152.5
|
190
|
F10/102
|
1.6
|
11
|
158
|
203
|
19.1
|
4
|
22
|
19
|
328
|
|
4"
|
100
|
157
|
190.5
|
229
|
F10/102
|
1.6
|
11
|
173
|
228.5
|
19.1
|
4
|
22
|
23.8
|
328
|
Materials List
|
NO.
|
Description
|
Q'TY
|
Material
|
|
1
|
Body
|
1
|
ASTM-A351-CF8M
|
ASTM-A216-WCB
|
|
2
|
Cap
|
1
|
ASTM-A351-CF8M
|
ASTM-A216-WCB
|
|
3
|
Ball
|
1
|
ASTM-A351-CF8M
|
ASTM-A351-CF8
|
|
4
|
Seat
|
2
|
PTFE
|
PTFE
|
|
5
|
Joint Gasket
|
1
|
PTFE
|
PTFE
|
|
6
|
Bolt
|
4~8
|
SUS 304
|
SUS 304
|
|
7
|
Nut
|
4~8
|
SUS 304
|
SUS 304
|
|
8
|
Thrust Washer
|
1
|
PTFE
|
PTFE
|
|
9
|
Stem Packing
|
1
|
PTFE
|
PTFE
|
|
10
|
Gland
|
1
|
SUS 304
|
SUS 304
|
|
11
|
Stem
|
1
|
SUS 316
|
SUS 304
|
|
12
|
C-Ring
|
2
|
S45C
|
S45C
|
|
13
|
Handle
|
1
|
FC 25
|
FC 25
|
|
14
|
Stopper
|
1
|
SUS 304
|
SUS 304
|
|
15
|
Gland Bolt
|
2
|
SUS 304
|
SUS 304
|
|
